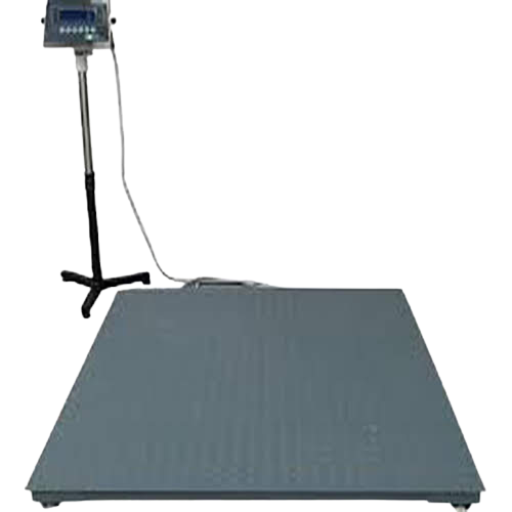

3000 KG WEIGHING SCALE SIZE :1500*1500

Description

3000 KG WEIGHING SCALE

Features:

  • UP TO 1/100000 INTERNAL RESOLUTION FOR BETTER ACCURACY AND STABILITY
  • KILOGRAM AND OTHER WEIGHING CONVERSION MODE
  • FULL RANGE TARE, AUTO ZERO TRACKING AND PRE TRE FACILITY S PROVIDED
  • PIECE COUNTING, MEMORY ACCUMULATION, AUTO POWER OFF, HOLDING AND MANY OTHER FACILITIES ARE PROVIDED
  • LONG LAST BATTERY OPERATED, APPROX 70 HOURS OPERATED USING BATTERY.
  • LOW POWER BATTERY INDICATION IS PROVIDED.
  • RS-232/ PRINTER ARE OPTIONAL.
  • HEAVY METAL FABRICATION AND DOUBLE POWDER COATING, WITH PPF COATING IS PROVIDED.
  • ULTRA GREEN 08” HD DISPLAY IS PROVIDED.
  • 3000 KG WEIGHING SCALE

Specifications:

  • DISPLAY : ULTRA GREEN 0.8” HD
  • BATTERY : RECHARGEABLE BATTERY, 6VOLT/5 AH, LONG LASTING
  • MOTHERBOARD : HS1230 ADC IC WITH 10 LAC COUNTS SUPPORT
  • CONTROLLER : ATMEL FEBRICATED IC CONTROLLER WITH IN BUILT RAM AND ROM
  • LOAD CELL : FOUR LOAD CELL TECHNOLOGY, IP 68 APPROVED SS FULL SIZE HIGHLY SENSIBLE SENSOR
  • OVERLOAD : 200% OF RATED LOAD
  • POWER SUPPLY : AC, 190-220 VOLT, IN BUILT SMPS.
  • RESPONSE TIME : 1-3 MS.
  • FABRICATION : HEAVY GRADE MS SHEET AND HEAVY SS TOP MATERIAL
  • 3000 KG WEIGHING SCALE

Applications:

  • Minimum Order Quantity : Piece
  • Material : 4*2 C CHANNEL WITH 3 MM CHECKER TOP, HEAVY FABRICATION
  • Brand : pinnacle
  • Model Name/Number : pl909
  • Series : Platform Scale
  • Type : regular
  • Size : 1000*1000mm
  • Usage/Application : Weighing
  • Capacity : 1000kg/1500KG
  • Accuracy : 200 gram
  • 3000 KG WEIGHING SCALE
