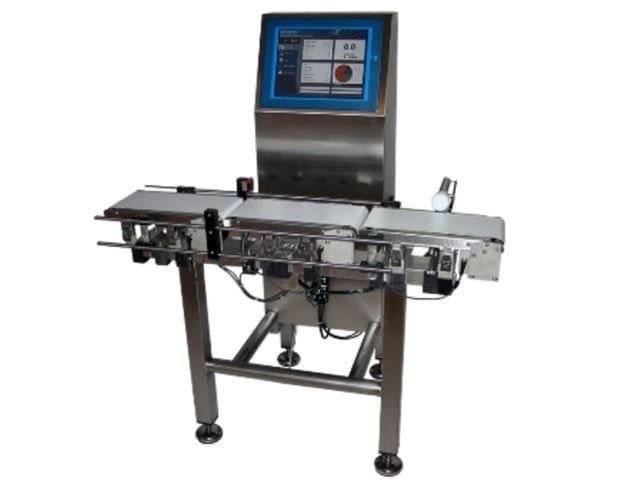

Online Checkweigher
Description
-
Customer to quickly eliminate that were out of spec before they were even packaged, significantly reducing packaging waste.
-
The checkweigher also allowed the customer to maximize the efficiency
-
Increased production performance
-
Preferably suited to meet production demands in food, pharma, and industrial production environments
MODEL 1
MOC : SS/MS
Max Capacity: 20 Kg
Min Weight to Check : 300 gm
Conveyor Size : L : 600 mm x W : 500mm
Min Product Size: L : 150mm x W : 150mm
Max Product Size : L : 300mm x W : 500mm
Max Speed : 80 PPM
Accuracy : +/- 20gm
Type of Rejection: Pusher / Conveyor Stop
Catalogue
GA Drawing
MODEL 2 :
MOC : SS/MS
Max Capacity: 50 Kg
Min Weight to Check : 1kg
Conveyor Size : L: 1200 mm x W: 800 mm
Min Product Size : L : 200mm x W : 150mm
Max Product Size : L : 600mm x W : 800mm
Max Speed : 25PPM
Accuracy : +/- 20gm
Type of Rejection : Pusher / Diverter
